Vertical Oil Chilli Sauce Ketchup Honey Small Sachet Piston Liquid
Filling Machine
Function:This machine can automatically complete a series of
actions,such as bag making,filling,forming,date printer,sealing and
cutting.
Packing material:Belong to packing material of hot-sealing,such as
polyester/polyethylene,nylon-compound membrane,strengthen-compound
membrane,BOPP etc.
Features:
1) Imported PLC control system and color touching screen enable
easy and efficeint operation
2) The bag type is diversified, and it can provide customers with
pillow-shoaped bags, gusset bags, hanging hole bags, and even bags
3) Imported servo film transport system, imported color standard
sensor, accurate positioning, excellent machine performance and
beautiful packaging
4) A variety of automatic alarm protection functions are used to
minimize losses
Technical Parameters
| Model | JSL-300 |
| Bag Type | Special shape, 3/4 sides seal or back side seal |
| Bag Size | W: 30-165mm L:30-150mm |
| Packing Speed | 60-160 bags/min |
| Method of Measurement | Measuring cup type |
| Range of Measurement | 0-330ml |
| Total Power | 1500W |
| Cutting type | round corner cut/ slice cut/ linked bags/ toothed cut |
| Machine Size (L*W*H) | 930*730*1700mm |
| Voltage | 380V or 220V or made accordingly |
Vertical Oil Chilli Sauce Ketchup Honey Small Sachet Piston Liquid
Filling Machine
Cutting Type:
Vertical Oil Chilli Sauce Ketchup Honey Small Sachet Piston Liquid
Filling Machine

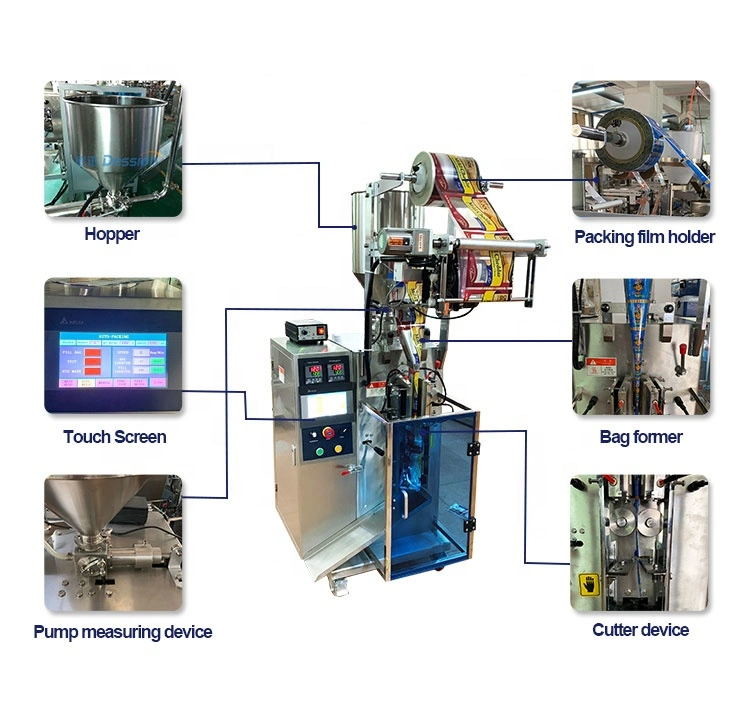

Machine Details:
Vertical Oil Chilli Sauce Ketchup Honey Small Sachet Piston Liquid
Filling Machine
Q & A
Q1: Are you a factory or a trade company?
A: We are a packaging machinery manufacturer specializing in VFFS
packing machine, horizontal flow packing machine, film shrink
wrapper and box carton packing machine, which apply to pack liquid,
powder, granules, daily products, food etc.
Q2: How can I trust you?
A: Pls find our business license, ISO certificate and SGS
certificate audited by made-in-China
Q3: How to find a suitable machine for my products.
A: Pls advise what your product is( It would be better if you could
provide the image or video), the unit packing weight, the bag shape
and size( width + length) and other requirements. We will match the
suitable machine for you .
Q4: How can you guarantee the machine quality?
A: We will list all the machine configuration ( components brand,
material, specifications etc.) while doing the quotation. Before
delivery, we will send you the pictures and video for you to check,
or you can arrange a person to check it.
Q5:Can you explain the whole transaction process?
A: 1.Inquiry and communiate to comfirm the details and
requirements.
2. Sign the contract.
3. Arrange 30% deposit to our company.
4. Factory arrange production.
5. Testing and detecting the machine.
6. Inspected by the customer.
7. Arrange the balance payment before shipment.
Q6: Is the engineer available to serve overseas?
A: Yes, but you need to pay the trip expense.
In order to save your cost, we can support via on-line video call.
