Automatic Horizontal Flow Food Container Packing Machine With
Products Feeding
Machine Introduction
1. Full automatic loading container machine line is consist of pull
conveyor, distributor, feeding unit, and automatic packaging
composition, automatic sub support, arrangement, assemble,
confluence processing, products can be sent into the container and
be packed accurately.
2. It can be separatethe container from the machine and also make
the products load in the container synchronously by the program, it
can pack together with deoxidiser, alcohol tablet, automatic
arrangement, packaging, in the process of packaging, prevent the
operator from touching the food, avoid pollution, meet the sanitary
requirement of food hygiene.
3. The whole machine can be intelligent operated by touching the
screen and the embed PLC, the product menu function can be
configured and adjusted conveniently and quickly.
4.Panasonic driver control system to ensure the stability and
reliability of the packaging machine, avoiding empty packaging
completely, reducing waste material.
5. The whole conveyor belt is designed with cantilever frame, which
is simple and convenient for installed, disassembled and cleaned,
satisfy the requirements for production hygiene management for the
users.
6. The whole packing machine is equipped with multiple safety
precaution, including electric leakage protection, emergency stop
function, fault stop protection, protective cover, warning lights
etc.
Automatic Horizontal Flow Food Container Packing Machine With
Products Feeding
Technical Parameters and Specification
| Model | YB-260B | YB-260D |
| Film Width | Max.340mm |
| Bag Length | Double Knife | 65-190mm | 90-220mm |
| Single Knife | 120-280mm | 150-330mm |
| Bag Width | 50-160mm |
| Product Height | Max.55mm/60mm |
| Film Roller Diameter | Max.320mm |
| Packing Speed | 80-180bags/min |
| Power | 220V,50/60HZ,8KW |
| Machine Size | L7090*W2383*H1600mm |
| Machine Weight | 2195KG |
Automatic Horizontal Flow Food Container Packing Machine With
Products Feeding

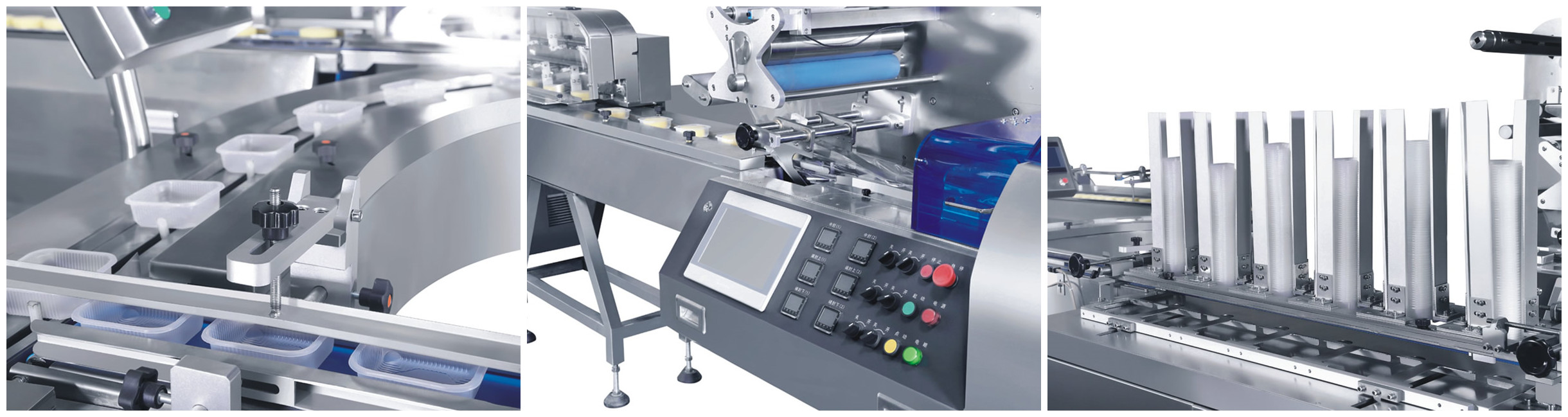

Machine Details:
Automatic Horizontal Flow Food Container Packing Machine With
Products Feeding
Q & A
Q1: Are you a factory or a trade company?
A: We are a packaging machinery manufacturer specializing in VFFS
packing machine, horizontal flow packing machine, film shrink
wrapper and box carton packing machine, which apply to pack liquid,
powder, granules, daily products, food etc.
Q2: How can I trust you?
A: Pls find our business license, ISO certificate and SGS
certificate audited by made-in-China
Q3: How to find a suitable machine for my products.
A: Pls advise what your product is( It would be better if you could
provide the image or video), the unit packing weight, the bag shape
and size( width + length) and other requirements. We will match the
suitable machine for you .
Q4: How can you guarantee the machine quality?
A: We will list all the machine configuration ( components brand,
material, specifications etc.) while doing the quotation. Before
delivery, we will send you the pictures and video for you to check,
or you can arrange a person to check it.
Q5:Can you explain the whole transaction process?
A: 1.Inquiry and communiate to comfirm the details and
requirements.
2. Sign the contract.
3. Arrange 30% deposit to our company.
4. Factory arrange production.
5. Testing and detecting the machine.
6. Inspected by the customer.
7. Arrange the balance payment before shipment.
Q6: Is the engineer available to serve overseas?
A: Yes, but you need to pay the trip expense.
In order to save your cost, we can support via on-line video call.
