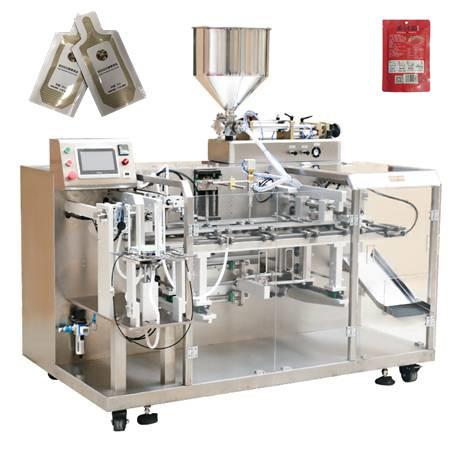

Horizontal Rotary Premade Pouch Liquid Food Bag Packing Machine
All kinds of liquid and think-liquid (sauce), fruit juice,
seasoning sauce, tomato sauce, peanut butter, jam, chili sauce,
hand sanitizer, liquid detergent and so on.
Features:
1. With the function auto filling,measuring,bag forming,sealing and
cutting. Bag-making system adopts step motor with high
precision(error is less than 1mm).
2.PLC control with stable,reliable biaxial high accuracy output and
color touch screen, bag-making, measuring, filling, printing,
cutting , finished in one operation.
3.To ensure the same length of each bag, high sensitive
electro-optical sensor system is provide to the realize automatic a
lignment on the packing film.
Horizontal Rotary Premade Pouch Liquid Food Bag Packing Machine
Technical Parameters
| Model | 210Y |
| Capacity | 10-45bags/min(depends on the material) |
| Tolerance | 0.2-3g |
| Control System | Servo Controller+Touch Screen |
| Bag Width | 80-200mm |
| Bag Length | 80-280mm |
| Suitable Bag Type | Various premade bag such as standup pouch, 4-sides sealing bag,
zipper bag, doypack bag, paper bag, spout bag, flat bottom bag etc. |
| Suitable Bag Material | PP, PE, PVC, PS, EVA, PET, PVDC+PVC, OPP+composite CPP etc. |
| Air Consumption | 0.6m3/min |
| Air Pressure | 0.6-0.8Mpa |
| Power Supply | 380V, 50HZ, 3.2KW |
Machine Size | L1500*W1070*H1850mm |
| Machine Weight | 500kg |
Horizontal Rotary Premade Pouch Liquid Food Bag Packing Machine
Bag type
Horizontal Rotary Premade Pouch Liquid Food Bag Packing Machine
Machine details
Horizontal Rotary Premade Pouch Liquid Food Bag Packing Machine
Q&A
Q1: Are you a factory or a trade company?
A: We are a packaging machinery manufacturer specializing in VFFS
packing machine, horizontal flow packing machine, film shrink
wrapper and box carton packing machine, which apply to pack liquid,
powder, granules, daily products, food etc.
Q2: How can I trust you?
A: Pls find our business license, ISO certificate and SGS
certificate audited by made-in-China
Q3: How to find a suitable machine for my products.
A: Pls advise what your product is( It would be better if you could
provide the image or video), the unit packing weight, the bag shape
and size( width + length) and other requirements. We will match the
suitable machine for you .
Q4: How can you guarantee the machine quality?
A: We will list all the machine configuration ( components brand,
material, specifications etc.) while doing the quotation. Before
delivery, we will send you the pictures and video for you to check,
or you can arrange a person to check it.
Q5:Can you explain the whole transaction process?
A: 1.Inquiry and communiate to comfirm the details and
requirements.
2. Sign the contract.
3. Arrange 30% deposit to our company.
4. Factory arrange production.
5. Testing and detecting the machine.
6. Inspected by the customer.
7. Arrange the balance payment before shipment.
Q6: Is the engineer available to serve overseas?
A: Yes, but you need to pay the trip expense.
In order to save your cost, we can support via on-line video call.
