Automatic Hot Glue Or Flap Insert Boxing Cartoning Food Packaging
Machine
Introduction
Mainly applicable to automatic boxing of medical masks, food,
medical supplies, toys, stationery, auto parts, cosmetics,
hardware, daily necessities, and other small products
Features:
1) Packing forms such as automatic feeding, box opening, boxing,
batch No. printing, box sealing,waste rejecting, etc. are adopted.
Featured by compact and reasonable structure, simple operation and
adjustment.
2) Servo/step motor, touch screen, PLC control system and
man-machine interface display make operation more clear and
convenient. With high automation degree, the machine is more
user-friendly.
3) The photoelectric eye automatic detection tracking system is
adopted. the empty bag, No boxing ,so as to save packing materials
to the utmost extent.
4) With wide packing range and convenient adjustment, fast
switching among various specifications and sizes can be realized.
5) Change of specifications does not need change of molds, but can
be realized through "adjustment".
6) The product will stop automatically when it is not in the box.
Main drive motor overload protection device, more safe and
reliable;
7) According to customer requirements, the upturning type safety
protective cover is adopted, which is featured by simple operation
and beautiful appearance.
8) Linked production with the bottling line, filling machine,
labeling machine, ink jet printer, online weightometer,
three-dimensional packing machine and other production lines and
equipment can be realized.
9) The automatic feeder and box feeding system can be customized
according to the product.
10) According to customer requirements, the hot melt glue machine
can be equipped, and the hot melt glue spreading and box sealing
and mechanical glue brushing and box sealing can be adopted.
Automatic Hot Glue Or Flap Insert Boxing Cartoning Food Packaging
Machine
Technical Parameters
| Model | 30-60PJ/CH |
| Speed | 40-50pieces/min |
| Adjustable Box Size | L:100-220mm W:100-180mm H:20-70mm |
| Paper Specification | 250-400g/m^2 |
| Power | 1-4.5kw |
| Voltage | 220V,50HZ |
| Air Pressure | 0.5- 0.8Mpa |
| Air Consuption | 15-20L/min |
Automatic Hot Glue Or Flap Insert Boxing Cartoning Food Packaging
Machine

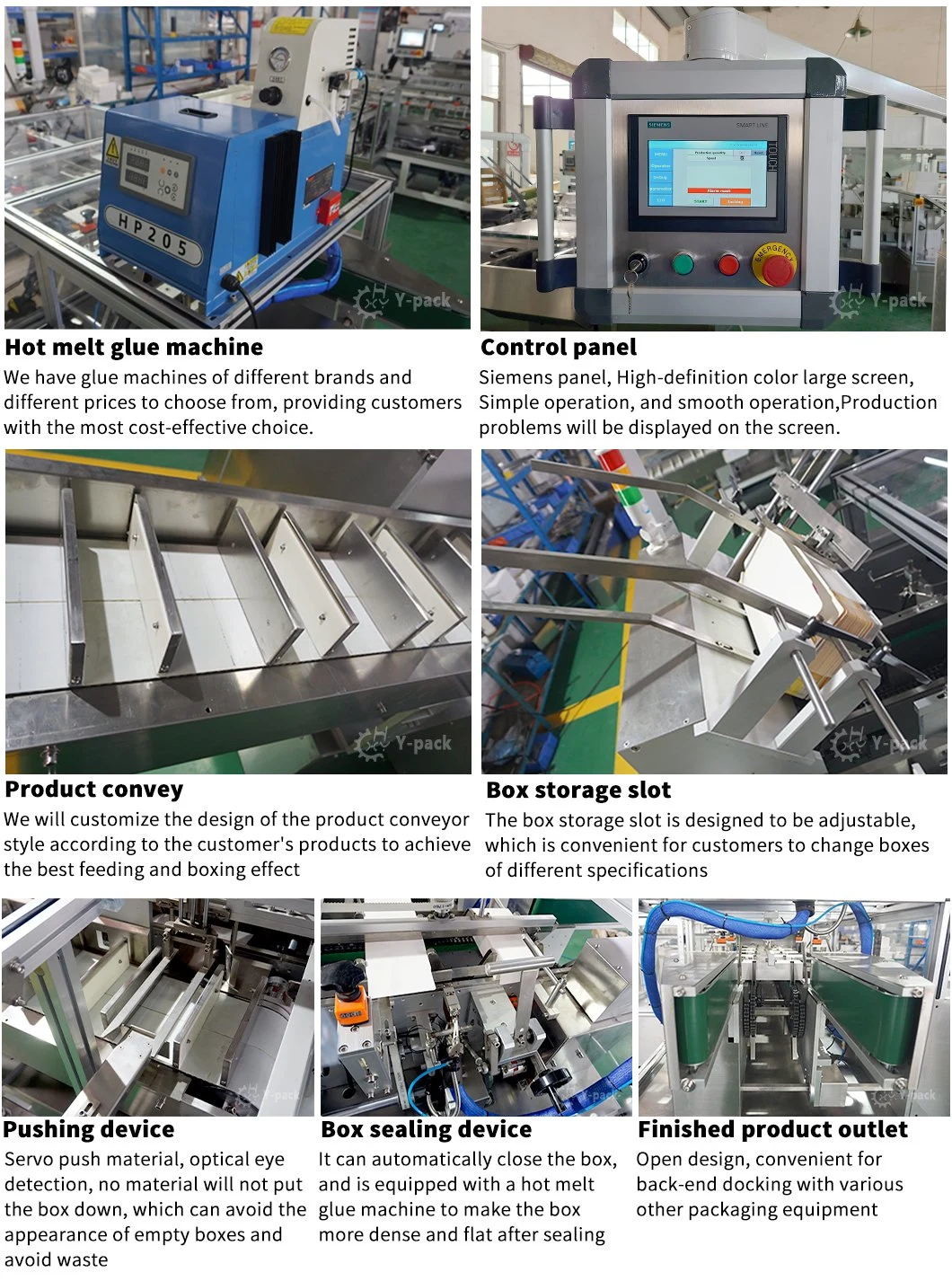

Details
Automatic Hot Glue Or Flap Insert Boxing Cartoning Food Packaging
Machine
Flow chart of forming hot glue box
Automatic Hot Glue Or Flap Insert Boxing Cartoning Food Packaging
Machine
Q1: Are you a factory or a trade company?
A: We are a packaging machinery manufacturer specializing in VFFS
packing machine, horizontal flow packing machine, film shrink
wrapper and box carton packing machine, which apply to pack liquid,
powder, granules, daily products, food etc.
Q2: How can I trust you?
A: Pls find our business license, ISO certificate and SGS
certificate audited by made-in-China
Q3: How to find a suitable machine for my products.
A: Pls advise what your product is( It would be better if you could
provide the image or video), the unit packing weight, the bag shape
and size( width + length) and other requirements. We will match the
suitable machine for you .
Q4: How can you guarantee the machine quality?
A: We will list all the machine configuration ( components brand,
material, specifications etc.) while doing the quotation. Before
delivery, we will send you the pictures and video for you to check,
or you can arrange a person to check it.
Q5:Can you explain the whole transaction process?
A: 1.Inquiry and communiate to comfirm the details and
requirements.
2. Sign the contract.
3. Arrange 30% deposit to our company.
4. Factory arrange production.
5. Testing and detecting the machine.
6. Inspected by the customer.
7. Arrange the balance payment before shipment.
Q6: Is the engineer available to serve overseas?
A: Yes, but you need to pay the trip expense.
In order to save your cost, we can support via on-line video call.
