Rotary Automatic Horizontal Flow Cookies Packing Machine With
Pulling Film Downwards
Application :
Automatic packing many kinds of products, such as biscuit, cake,
moon cake, dry fruit, instant noodle, candy, medicine, daily
products, hardware, toys, gifts, and so on.
Features:
1.Dual frequency conversion control, Bag length can be set and cut
in one step, saving time and film.
2.Interface features easy and quick setting and operation.
3.Self failure diagnosis, clear failure display.
4.High sensitivity photoelectric eye color tracing, numerical input
of cutting sealing position for extra accuracy.
5.Temperature independent PID control, more suitable for packaging
different materials.
6.Positioned stop function, without sticking knife or wasting film.
7.Simple driving system, reliable working, convenient maintenance.
8.All control is realized through software, easy for function
adjusting and technical upgrade.
Automatic Horizontal Flow Rotary Pulling Film Upward Pack Machine
Technical Parameters And Specifications
| Model | 250B/D | 350B/D | 450D | 600D |
| Film Width | Max.250 mm | Max.350 mm | Max.450 mm | Max.600 mm |
| Bag Length | 65~330 mm | 65~330 mm | 120~450 mm | 130~600 mm |
| Bag Width | 30~110 mm | 50~160 mm | 60~210 mm | 130~600 mm |
| Product Height | MAX. 40/55 mm | MAX. 45/80 mm | MAX. 110 mm | MAX. 110 mm |
| Packing Speed | 40~230 bags/min | 40~230 bags/min | 30~180 bags/min | 20~150 bags/min |
| Machine Power | 220V, 50/60Hz, 2.4KW |
| Machine Size | 3770*670*1450 mm | 4020*745*1450 mm | 3990*900*1468 mm | 3990*1000*1468 mm |
| Machine Weight | 400KG | 500KG | 550KG | 600KG
|
Automatic Horizontal Flow Rotary Pulling Film Upward Pack Machine

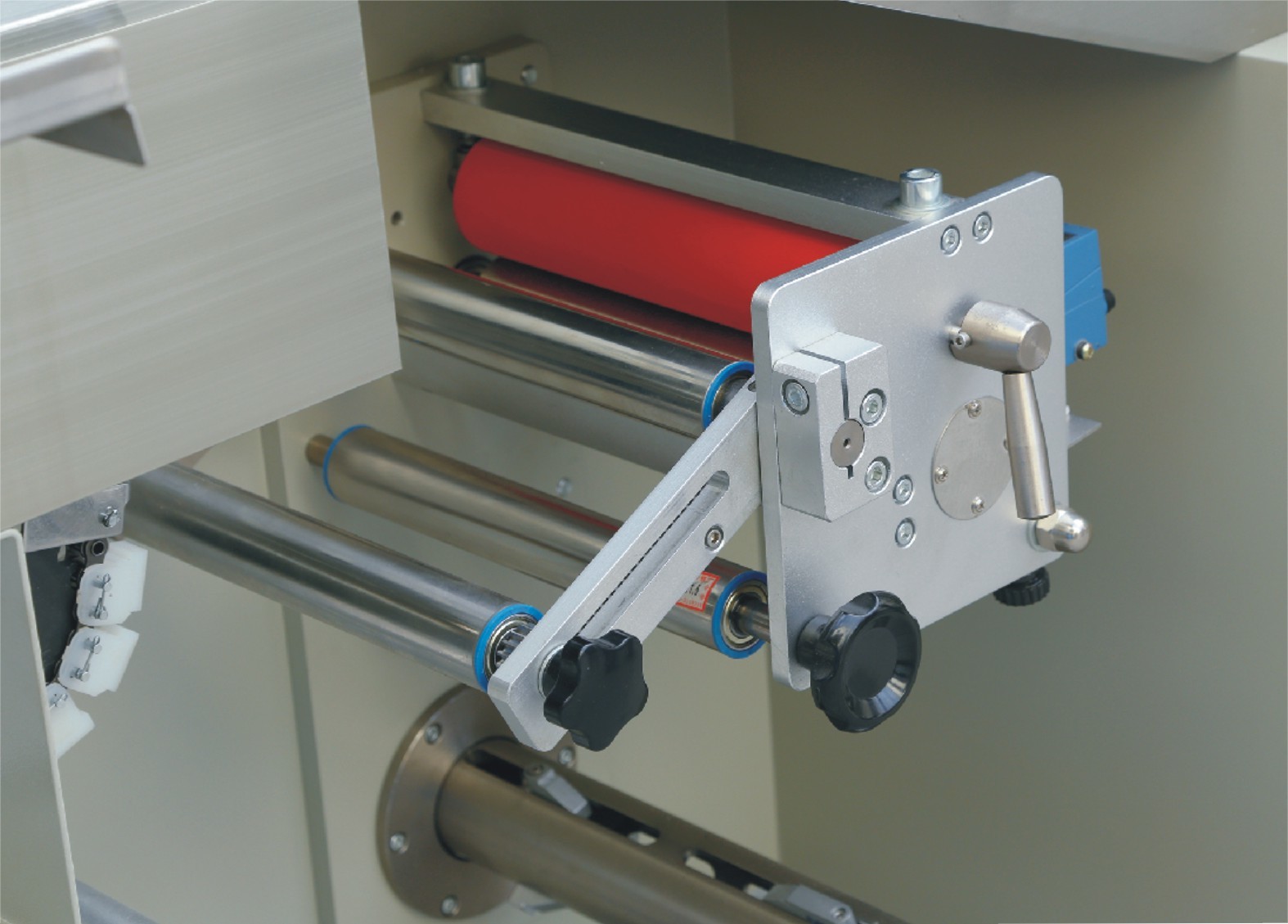

Machine Details:
Automatic Horizontal Flow Rotary Pulling Film Upward Pack Machine

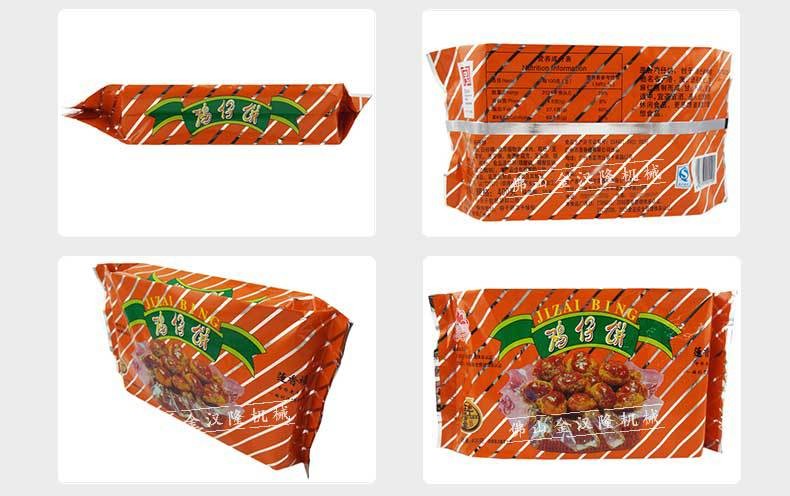

bag type
Automatic Horizontal Flow Rotary Pulling Film Upward Pack Machine
optional device
Automatic Horizontal Flow Rotary Pulling Film Upward Pack Machine
Q & A
Q1: Are you a factory or a trade company?
A: We are a packaging machinery manufacturer specializing in VFFS
packing machine, horizontal flow packing machine, film shrink
wrapper and box carton packing machine, which apply to pack liquid,
powder, granules, daily products, food etc.
Q2: How can I trust you?
A: Pls find our business license, ISO certificate and SGS
certificate audited by made-in-China
Q3: How to find a suitable machine for my products.
A: Pls advise what your product is( It would be better if you could
provide the image or video), the unit packing weight, the bag shape
and size( width + length) and other requirements. We will match the
suitable machine for you .
Q4: How can you guarantee the machine quality?
A: We will list all the machine configuration ( components brand,
material, specifications etc.) while doing the quotation. Before
delivery, we will send you the pictures and video for you to check,
or you can arrange a person to check it.
Q5:Can you explain the whole transaction process?
A: 1.Inquiry and communiate to comfirm the details and
requirements.
2. Sign the contract.
3. Arrange 30% deposit to our company.
4. Factory arrange production.
5. Testing and detecting the machine.
6. Inspected by the customer.
7. Arrange the balance payment before shipment.
Q6: Is the engineer available to serve overseas?
A: Yes, but you need to pay the trip expense.
In order to save your cost, we can support via on-line video call.
