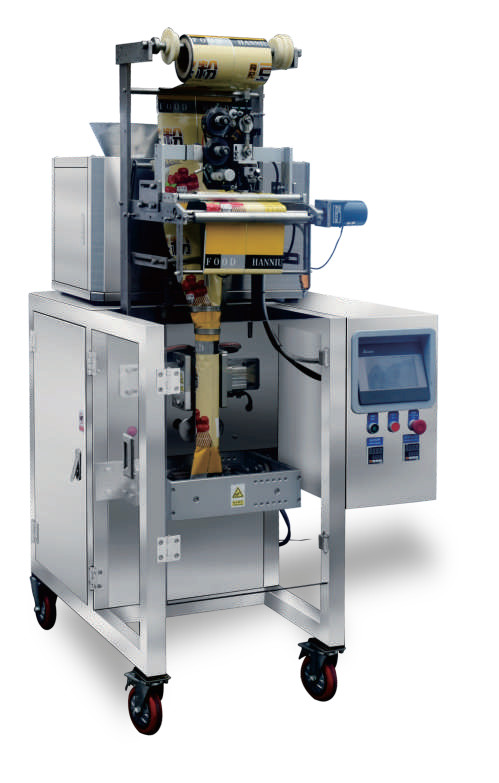

Automatic Small Size Vertical Granule Packaging Machine With Spiral
Scale
Spiral scale small vertical granule packaging machine is Suitable for automatic packaging of small and medium particles in the food, medicine, and chemical industries.For example: automatic measurement and packaging of small particles such as monosodium glutamate, chicken
essence, white sugar, seasoning packets.
Optional device: date coding machine
Supporting metering device: electronic scale automatic
metering
Features:
1.Equipped with safety protection, in line with corporate safety management requirements;
2.Double-feed packaging structure, little space, fast speed, high efficiency, and resource saving;
3.Using PLC servo drive system, large display touch screen constitutes the drive control core; it maximizes the control accuracy, reliability and intelligence of the whole machine;
4.The touch screen can store the packaging process parameters of a variety of products, and can be used at any time when changing products without resetting; .
5.The left and right sides can be used to pack products of different weights and sizes at the same time, and the other side will not be affected when one side is not used;
6.All stainless steel body, beautiful and durable.
Automatic Small Size Vertical Granule Packaging Machine With Spiral
Scale
Machine Working Flow
Automatic Small Size Vertical Granule Packaging Machine With Spiral
Scale
Technical parameters
| Model | JSL-CS |
| Packing Range | 1-10g |
| Paper Material | materials such as nylon, non-woven fabric and corn fiber |
| Packing Speed | 50- 80 bags/min |
| Roll outer diameter | ≤400mm |
| Roll inner diameter | 76mm |
| Air pressure | ≥0.6Mpa |
| Power Supply | 220V 50/60Hz 2.5Kw |
| Machine Dimension | L1250*W800*H1850 mm |
| Machine Weight | 260kg |
Automatic Small Size Vertical Granule Packaging Machine With Spiral
Scale
Q&A
Q1: Are you a factory or a trade company?
A: We are a packaging machinery manufacturer specializing in VFFS
packing machine, horizontal flow packing machine, film shrink
wrapper and box carton packing machine, which apply to pack liquid,
powder, granules, daily products, food etc.
Q2: How can I trust you?
A: Pls find our business license, ISO certificate and SGS
certificate audited by made-in-China
Q3: How to find a suitable machine for my products.
A: Pls advise what your product is( It would be better if you could
provide the image or video), the unit packing weight, the bag shape
and size( width + length) and other requirements. We will match the
suitable machine for you .
Q4: How can you guarantee the machine quality?
A: We will list all the machine configuration ( components brand,
material, specifications etc.) while doing the quotation. Before
delivery, we will send you the pictures and video for you to check,
or you can arrange a person to check it.
Q5:Can you explain the whole transaction process?
A: 1.Inquiry and communiate to comfirm the details and
requirements.
2. Sign the contract.
3. Arrange 30% deposit to our company.
4. Factory arrange production.
5. Testing and detecting the machine.
6. Inspected by the customer.
7. Arrange the balance payment before shipment.
Q6: Is the engineer available to serve overseas?
A: Yes, but you need to pay the trip expense.
In order to save your cost, we can support via on-line video call.
