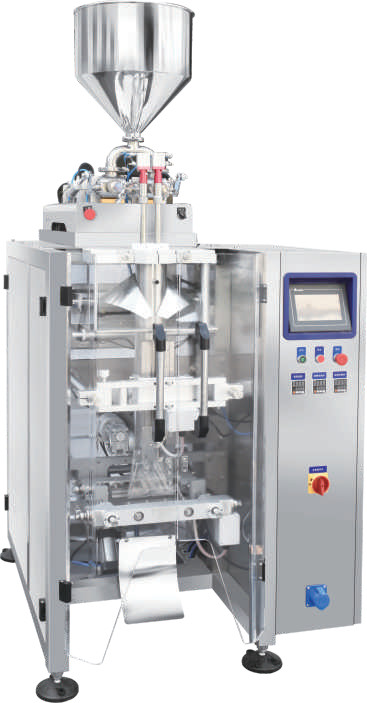

Automatic Medium Size Vertical Granule Filling Machine With Two
Servo Motors
This is a machine developed by weighing machine and sachet bag
filing and sealing machine. And it realizes the sachet bag granular
packing. The machine is controlled by microcomputer, precise high
speed humanized design, easy to operate. By adjusting the
temperature, setting the bag length and setting the film delivery
speed, a good packaging effect can be achieved.
Feature
1.There is protection device.
2.Smart temperature controller.
3.PLC servo control system, air-actuated control system, big touch
screen.
4.Function: dosing, bag making, filling, exhaust, sealing,cutting,
5.Can store many packing parameters.
6.There is fault display function, to show you the problem.
7.Except for the normal bag forming type, gusset bag and punching
are optional.
Automatic Medium Size Vertical Granule Filling Machine With Two
Servo Motors

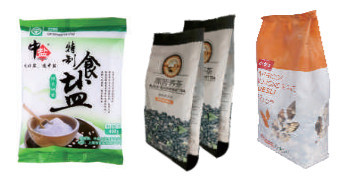

Packing Samples
Automatic Medium Size Vertical Granule Filling Machine With Two
Servo Motors
Machine Working Flow
Automatic Medium Size Vertical Granule Filling Machine With Two
Servo Motors
| Model | JSL-320 |
| Bag Type | Special shape, 3/4 sides seal or back side seal etc. |
| Bag Size | W: 50-180mm L:50-150mm |
| Packing Speed | 20-105 bags/min |
| Method of Measurement | Measuring cup type |
| Compressed air consumption | 6-8kg/m2 ~0.3m3 /min |
| Total Power | 3.6KW |
| Cutting type | round corner cut/ slice cut/ linked bags/ toothed cut |
| Machine Size (L*W*H) | L1661*W1160*H2291mm |
| Voltage | 220V, 50/60HZ |
Automatic Medium Size Vertical Granule Filling Machine With Two
Servo Motors
Q&A
Q1: Are you a factory or a trade company?
A: We are a packaging machinery manufacturer specializing in VFFS
packing machine, horizontal flow packing machine, film shrink
wrapper and box carton packing machine, which apply to pack liquid,
powder, granules, daily products, food etc.
Q2: How can I trust you?
A: Pls find our business license, ISO certificate and SGS
certificate audited by made-in-China
Q3: How to find a suitable machine for my products.
A: Pls advise what your product is( It would be better if you could
provide the image or video), the unit packing weight, the bag shape
and size( width + length) and other requirements. We will match the
suitable machine for you .
Q4: How can you guarantee the machine quality?
A: We will list all the machine configuration ( components brand,
material, specifications etc.) while doing the quotation. Before
delivery, we will send you the pictures and video for you to check,
or you can arrange a person to check it.
Q5:Can you explain the whole transaction process?
A: 1.Inquiry and communiate to comfirm the details and
requirements.
2. Sign the contract.
3. Arrange 30% deposit to our company.
4. Factory arrange production.
5. Testing and detecting the machine.
6. Inspected by the customer.
7. Arrange the balance payment before shipment.
Q6: Is the engineer available to serve overseas?
A: Yes, but you need to pay the trip expense.
In order to save your cost, we can support via on-line video call.
