Juice Liquid Shampoo Sauce Tomato Ketchup Rotary Premade Pouch
Packing Machine
This filling sealing packing machine is suitable for packing jelly,
soy milk, yogurt, mineral water, juice, ice cream, edible oil,
seasoning, washing liquid and so on, we can customized equipment
base on client's product request.
Features:
1. It uses stainless steel 304 shell for food grade required.
2. Automatic detection. No pouch or pouch is not opened completely,
no filling, no sealing.
3. Horizontal Infeed conveyor or Magazine cabinet suits for bags
with zipper, max. put 300pcs each time.
4. Zipper Openner System: Servo motor (Panasonic / Japan)
controlled.
5. Independent temperature control system (Omron/Japan).
6. PLC adjust bag width clamping: Only needs 2mins by auto PLC for
adjust different bag width sizes.
7. It includes ribbon type date code: 3 lines * 17 characters.
8. Guarding: Glass Door Alarm (option) / Air Pressure Abnormal
9. Internal grooved cam design: The technology with high precision,
suits for max. packing speed: 50 cycles/min with stable running.
10. Use free oil vacuum pump, avoid polluting the environment in
the production.
Juice Liquid Shampoo Sauce Tomato Ketchup Rotary Premade Pouch
Packing Machine

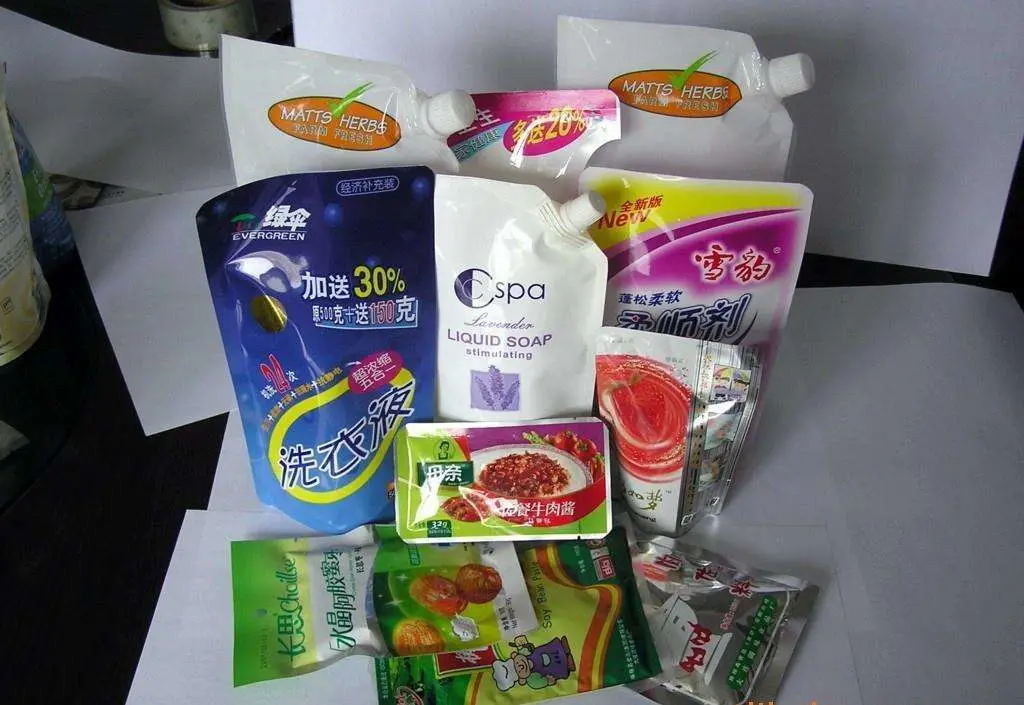

Bag type
Juice Liquid Shampoo Sauce Tomato Ketchup Rotary Premade Pouch
Packing Machine
Technical Parameters
| Model | 210Y |
| Capacity | 10-45bags/min(depends on the material) |
| Tolerance | 0.2-3g |
| Control System | Servo Controller+Touch Screen |
| Bag Width | 80-200mm |
| Bag Length | 80-280mm |
| Suitable Bag Type | Various premade bag such as standup pouch, 4-sides sealing bag,
zipper bag, doypack bag, paper bag, spout bag, flat bottom bag etc. |
| Suitable Bag Material | PP, PE, PVC, PS, EVA, PET, PVDC+PVC, OPP+composite CPP etc. |
| Air Consumption | 0.6m3/min |
| Air Pressure | 0.6-0.8Mpa |
| Power Supply | 380V, 50HZ, 3.2KW |
Machine Size | L1500*W1070*H1850mm |
| Machine Weight | 500kg |
Juice Liquid Shampoo Sauce Tomato Ketchup Rotary Premade Pouch
Packing Machine
Juice Liquid Shampoo Sauce Tomato Ketchup Rotary Premade Pouch
Packing Machine
Q&A
Q1: Are you a factory or a trade company?
A: We are a packaging machinery manufacturer specializing in VFFS
packing machine, horizontal flow packing machine, film shrink
wrapper and box carton packing machine, which apply to pack liquid,
powder, granules, daily products, food etc.
Q2: How can I trust you?
A: Pls find our business license, ISO certificate and SGS
certificate audited by made-in-China
Q3: How to find a suitable machine for my products.
A: Pls advise what your product is( It would be better if you could
provide the image or video), the unit packing weight, the bag shape
and size( width + length) and other requirements. We will match the
suitable machine for you .
Q4: How can you guarantee the machine quality?
A: We will list all the machine configuration ( components brand,
material, specifications etc.) while doing the quotation. Before
delivery, we will send you the pictures and video for you to check,
or you can arrange a person to check it.
Q5:Can you explain the whole transaction process?
A: 1.Inquiry and communiate to comfirm the details and
requirements.
2. Sign the contract.
3. Arrange 30% deposit to our company.
4. Factory arrange production.
5. Testing and detecting the machine.
6. Inspected by the customer.
7. Arrange the balance payment before shipment.
Q6: Is the engineer available to serve overseas?
A: Yes, but you need to pay the trip expense.
In order to save your cost, we can support via on-line video call.
