Horizontal Cup Cake Bread Confectionery Food Automatic Feeding And
Tray Loading Packing Line
Application
is mainly used for various kinds of solid objects with regular
shape (Square/ Rectangle/Circular/Ellipse/Flake etc.) such as food,
pharmaceuticals tools, daily necessities, hardware, or any other
products loaded in box or tray.
Introduction:
Material's sorting and packing capacity up to 200bags/min(depent on
specific products and packing material). Ajust large and small
pallet quickly, adapting to various products demand. The system
could seperate the pallet, and loading materials in tray, lauching
deoxidizer, sorting, packing automatically. Non-touch in the full
packing program, reducing the secondary pollution and match foods
hygiene requirements. High-precision and high-sensitive SICK
eletric eye tracking system, accurately control the products
position.
Horizontal Cup Cake Bread Confectionery Food Automatic Feeding And
Tray Loading Packing Line
Technical Parameters
| Model | YB-260B | YB-260D |
| Film Width | Max.340mm |
| Bag Length | Double Knife | 65-190mm | 90-220mm |
| Single Knife | 120-280mm | 150-330mm |
| Bag Width | 50-160mm |
| Product Height | Max.55mm/60mm |
| Film Roller Diameter | Max.320mm |
| Packing Speed | 80-180bags/min |
| Power | 220V,50/60HZ,8KW |
| Machine Size | L7090*W2383*H1600mm |
| Machine Weight | 2195KG
|
Horizontal Cup Cake Bread Confectionery Food Automatic Feeding And
Tray Loading Packing Line

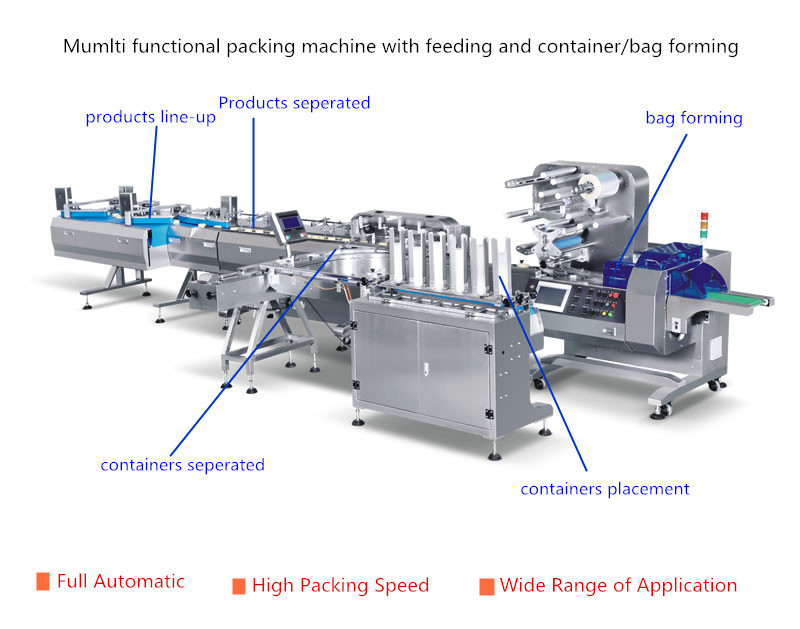

Machines Details
Horizontal Cup Cake Bread Confectionery Food Automatic Feeding And
Tray Loading Packing Line
Q1: Are you a factory or a trade company?
A: We are a packaging machinery manufacturer specializing in VFFS
packing machine, horizontal flow packing machine, film shrink
wrapper and box carton packing machine, which apply to pack liquid,
powder, granules, daily products, food etc.
Q2: How can I trust you?
A: Pls find our business license, ISO certificate and SGS
certificate audited by made-in-China
Q3: How to find a suitable machine for my products.
A: Pls advise what your product is( It would be better if you could
provide the image or video), the unit packing weight, the bag shape
and size( width + length) and other requirements. We will match the
suitable machine for you .
Q4: How can you guarantee the machine quality?
A: We will list all the machine configuration ( components brand,
material, specifications etc.) while doing the quotation. Before
delivery, we will send you the pictures and video for you to check,
or you can arrange a person to check it.
Q5:Can you explain the whole transaction process?
A: 1.Inquiry and communiate to comfirm the details and
requirements.
2. Sign the contract.
3. Arrange 30% deposit to our company.
4. Factory arrange production.
5. Testing and detecting the machine.
6. Inspected by the customer.
7. Arrange the balance payment before shipment.
Q6: Is the engineer available to serve overseas?
A: Yes, but you need to pay the trip expense.
In order to save your cost, we can support via on-line video call.
