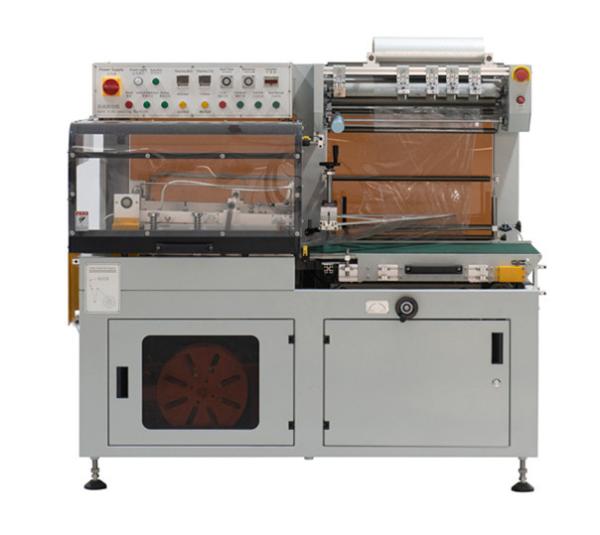

Automatic Carton Box Case Bottle POF Film "L" Sealing And Shrink
Tunnel Wrapping Machine
Introduction:
Suitable for large quantity shrink wrapping industries such as
stationery, food, cosmetic, pharmaceutical, metal industries etc,
imported PLC automatic program control, easy operation, safety
protection and alarm function, and effectively prevent incorrect,
packaging, Equipped with imported horizontal and vertical detection
photoelectric, easy to switch selection. It has the function of
contact, specially designed for packing small size products. The
machine can be connected with the production line, no need
additional operators.
Features:
1.Multiple photoelectric protection detection function, more safe
and efficient to use.
2.International famous electrical components, green cutting
process, so that the seal straight and neat.
3.The advanced Japanese Mitsubishi PLC programmable controller is
easy to operate and has the function of safety protection and
alarm.
4.Omni-directional safety protection measures (such as sealing and
cutting parts with Plexiglas protective cover, etc.), put an end to
man-machine injury accidents.
5.Automatic feeding, length can also be automatically adjusted by
the combination of electric eye and timer. Equipped with induction
motor, automatic waste winding.
6.The sealing line can be easily adjusted in the middle of the
product.
7.Suitable for packaging different shapes of products, single or
combination packaging.
Automatic "L" Type POF PVC Film Tunnel Heating Shrink Wrapper
Wrapping Packing Machine
Machine Details:
Automatic "L" Type POF PVC Film Tunnel Heating Shrink Wrapper
Wrapping Packing Machine
VL380 "L" Sealing Packing Machine
| Machine Size | L1680*W800*H1500mm |
| Power | 3P, 380V/2.5KW |
| Air Pressure | 5.5kg/cm^2 |
| Air Consumption | 3m^3/min |
| Packing Speed | 10-30pieces/min(0-15m) |
| Product Size | L:100-500mm, W:10-380mm, H:0-120mm |
| Film Material | POF |
Film Shrink Tunnel
| Equipment Size | L1370*W750*H1450mm |
| Chamber Size | L1000*W450*H250mm |
| Product Size | L:80-500mm, W:30-380mm, H:5-200mm |
| Power | 3P, 380V/0.88KW |
| Conveying Speed | 15m/min |
Automatic "L" Type POF PVC Film Tunnel Heating Shrink Wrapper
Wrapping Packing Machine
Packing Samples:
Automatic "L" Type POF PVC Film Tunnel Heating Shrink Wrapper
Wrapping Packing Machine
Q&A
Q1: Are you a factory or a trade company?
A: We are a packaging machinery manufacturer specializing in VFFS
packing machine, horizontal flow packing machine, film shrink
wrapper and box carton packing machine, which apply to pack liquid,
powder, granules, daily products, food etc.
Q2: How can I trust you?
A: Pls find our business license, ISO certificate and SGS
certificate audited by made-in-China
Q3: How to find a suitable machine for my products.
A: Pls advise what your product is( It would be better if you could
provide the image or video), the unit packing weight, the bag shape
and size( width + length) and other requirements. We will match the
suitable machine for you .
Q4: How can you guarantee the machine quality?
A: We will list all the machine configuration ( components brand,
material, specifications etc.) while doing the quotation. Before
delivery, we will send you the pictures and video for you to check,
or you can arrange a person to check it.
Q5:Can you explain the whole transaction process?
A: 1.Inquiry and communiate to comfirm the details and
requirements.
2. Sign the contract.
3. Arrange 30% deposit to our company.
4. Factory arrange production.
5. Testing and detecting the machine.
6. Inspected by the customer.
7. Arrange the balance payment before shipment.
Q6: Is the engineer available to serve overseas?
A: Yes, but you need to pay the trip expense.
In order to save your cost, we can support via on-line video call.
